Your Path to Performance & Peace of Mind.

High Performance Damper Drives for Precision Damper Control

Downloads

STANDARD-DD Printable Brochure (pdf)

Download

Drive Torque Output Chart (pdf)

Download

STANDARD-DD Field Service Brochure (pdf)

Download

Standard DD Damper Drives Power Point (pptx)

Download

Links


About Us

  • High Performance Damper Drives for Precision Damper Control


  • "Drop In Place" for Easy Retrofit Solutions of Existing Damper Drives


  • Wide Range of Torque Ratings available in seven (7) sizes from 90 to 10,415 ft. lbs. (122 TO 14,312 Nm)


  • Quarter-turn (90 deg.) Rotation is standard.  Other degrees of rotation are available.
  • Conventional or Smart Digital Positioner with HART Communication, Fieldbus, or Profibus options.


  • Control Options for Fail-Safe or Fail-in-Place on loss of Input Signal or Air Supply
  • Wide Range of Options available:  NEMA 4X (IP66) Enclosures, Position Transmitters, Alarm / Travel Limit Switches, Air Failure Lock-up, Air Reservoir for Fail OPEN / CLOSE, Manual Operation shifts easy from Automatic to Manual Control
  • Suitable for High Temperature Environments to 300°F (149°C)


  • Linear Stroke Cylinder Drives are also available
  • The Right Choice for New Installations:  The Perfect Solution for Retrofit.

industries

Electric Power Utilities


  • Electric Power Utilities
  • Oil & Gas Refineries
  • Chemical / Petrochemical
  • Steel, Aluminum & other metals

Oil & Gas Refineries


  • Pulp & Paper Mills
  • Pharmaceuticals
  • Food & Beverage
  • Water & Waste Water Treatment



Steel Mill


  • Co-Generation
  • Fluidized Bed Boilers
  • Glass Manufacturing
  • Cement & Lime
  • Ships


Applications

STANDARD-DD Damper Drive Applications Flow Modulation of Combustion Air & Flue Gas


• Forced Draft (FD) Fan

• Induced Draft (ID) Fan

• Primary Air (PA) Fan

• Gas Recirculating (GR) Fan

• Booster Fan

• Seal Air Fan

• Primary Air to Mills

• Mill Hot Air Control

• Mill Tempering (Cold) Air

• Mill Velocity/Volume Air

• Mill Shut-off

• Mill Burner Shut-off

• Mill Seal Air

• CE Windbox Fuel & Aux Air




Dampers

• CE Burner Nozzle Tilt Drives

• SOFA BOX Dampers

• SOFA BOX Nozzle Tilt

• Secondary Air Windbox

• Cyclone Burner Secondary Air

• Cyclone Burner Primary Air

• Air Heater Inlet

• Air Heater Outlet

• Air Heater Bypass

• Superheat Pass Dampers

• Reheat Pass Dampers

• Main Pass Dampers

• Bypass Dampers

• Gas Recirc Tempering

• Gas Recirc Bypass

• Baghouse Cell Isolation

• SCR System Dampers

• Scrubber Module Isolation

• Flop Gate Coal Diverter

• Bottom Ash Hopper

• Fly Ash Handling Systems

• Oxidation System Dampers

• Fluid drive Coupling Control:

F.D., I.D., P.A., G.R. Fans,

Boiler Feed Pumps

• Turbine Governors

• Stoker Speed Control

• Gas Turbine Exhaust Bypass


Solution

STANDARD-DD High Performance Damper Drives are the solution for Control of Combustion Air & Flue Gas thru a boiler.


STANDARD-DD is dedicated to assist our customers in providing resolutions.

Engineered for precise, accurate, dependable control for a wide variety of damper applications.


Rotary vane actuator - one moving part

  • Most reliable, efficient actuator design

Linear constant torque output for full 90° stroke

  • Output torques range from 90 ft. lbs. to 10,416 ft. lbs. (122 ot 14,312 Nm).
  • Master-Slave actuator option provides torque to 28,624 ft. lbs. (38,834 Nm).

Compact Rugged Design

  • Maximum environmental protection.

Wide range of input control & feedback options

  • Characterizable high-gain positioner with versatile signal conditions to interface with customers existing demand signal & feedback signals.

Durable corrosion resistant internal & external finish

High immunity to shock & vibration.


Damper Drives provide 100% duty cycle rating of 3600 starts per hour without overheating.

High Speed stroke times of three (3) seconds is available for full damper travel

No internal levers or gearing

  • Eliminates dead-band for fast response & sensitive control.

No dangerous external moving parts

  • Safe for operating & maintenance personnel

Designed for maintenance-free operation in harsh high temperature environments up to 300°F (149°C).

WARRANTY:

Three (3) years of (2) million cycles (4 million strokes), whichever occurs first, after date of shipment.

Inside Story


HEART of the STANDARD-DD DRIVE SYSTEM

  1. Dual Opposed Lip Seals - Provides effective, air assisted seal for low friction & long, maintenance-free life.
  2. Steel Travel Stops - On both sides of steel vane
  3. Corrosion-Resistant Finish - Durable TGIC-Polyester Epoxy powder-coat finish inside & outside of actuator surfaces
  4. Steel Side-Plate Seal Retainer - Located on both sides of steel vane.  Provides the strength to assure accurate Open and Close stop positions
  5. Integral Namur Manifold - For direct-mount solenoid valve, eliminating fittings & tubing
  6. Alloy Steel Drive Shaft - High tensile output shafts for strength and durability.  ENP finish for corrosion-resistance.  Wrench Manual Override and Vane Position Indicator
  7. Integral Vane / Shaft Casting - Cast as a single piece; only one moving part.  Eliminates all "slop", hysteresis or lost motion
  8. Stainless Steel Seal Expanders- Located on both sides of steel vane.  Ensures long-term lip seal-to-case contact.  Excellent in both high-cycle and low-cycle applications.


9. Stainless Steel Bolting Hardware - For long-term corrosion resistance

10. Bi-directional Travel Stops - 80° to 100° standard adjustments are stainless steel.  Extended travel stops available for reduced travel as low as 30° rotation

11. Large Air Inlet Ports on both sides of Actuator for Fast Operation- Provides for high-cycle speed of operation with no restrictions
12. Integral Namur Accessory Mount on outside top of Actuator Surface meets VDI/VDE 3485 accessory mount standards for positioners, limit switches and indicators

Drive Control Options

Conventional Positioner

  • Standard Linear Cam with square or square root cams available
  • Input Signals - 3-15, 3-27, 6-30 PSI / 4-20 mAdc / 1 to 5 VDC / 0 to 10 VDC / -10 to +10 VDC

Smart "Intelligent" Digital Positioner

  • 4-20 mAdc Signal
  • HART Protocol
  • Analog / Digital Communications
  • Microprocessor based
  • Autostroke calibration with diagnostics
  • Configured via local pushbuttons, PC with IBIS Software & FSK modem or handheld programmer
  • Profibus
  • Foundation Fieldbus
  • Explosion-Proof Positioner option
  • Low air bleed 0.0003 SCFM in Null state
  • Remote Mounted Positioner
  • CE Conformity

Feedback Signals

  • 4-20 mAdc Position Feedback
  • 1K Potentiometer Feedback

Adjustable Alarm / Travel Switches

  • 2 or 4 SPDT or DPDT Microswitches

Failure Modes

  • Fail OPEN or CLOSED with Air Reservoir
  • Hold last position on loss of signal
  • Hold last position on loss of supply air

Electrical Components

  • Nema 4X, (IP66) watertight, dust tight
  • Explosion-proof electrical ratings

ON-OFF for Isolation Service

  • Solenoid Valves, single & dual coil
  • 120, 240 VAC 60/50 Hz
  • 24, 125, 250 VDC

Manual Override

  • Hand Lever with locking bolt
  • Declutchable Gearbox with Handwheel
  • Pneumatic Regulator

Mechanical Speed Control Valves
Combo Particulate / Coalescing Air Filter
Booster Relays for Fast Drive Rotation
Air Failure Alarm Pressure Switch
Air Pressure Regulator with gauge

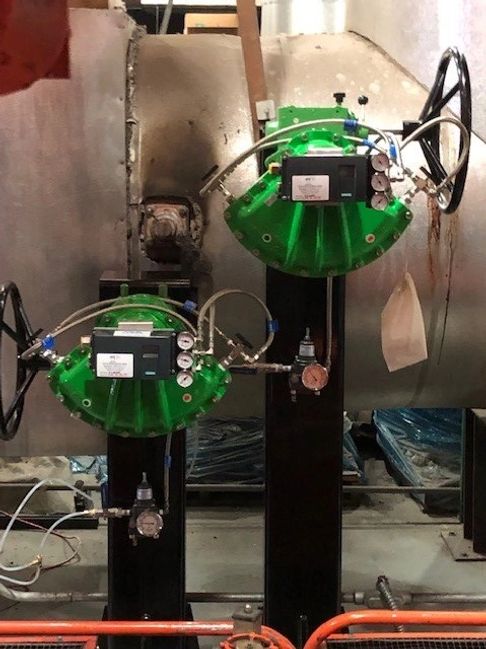

RETROFIT AILING DAMPER DRIVES WITH STANDARD-DD using rotary Vane Actuators as standard.  Other actuators are available.

  • Replace any existing brand of Electric or Pneumatic Damper Drives
  • Easy "Drop-in" installation

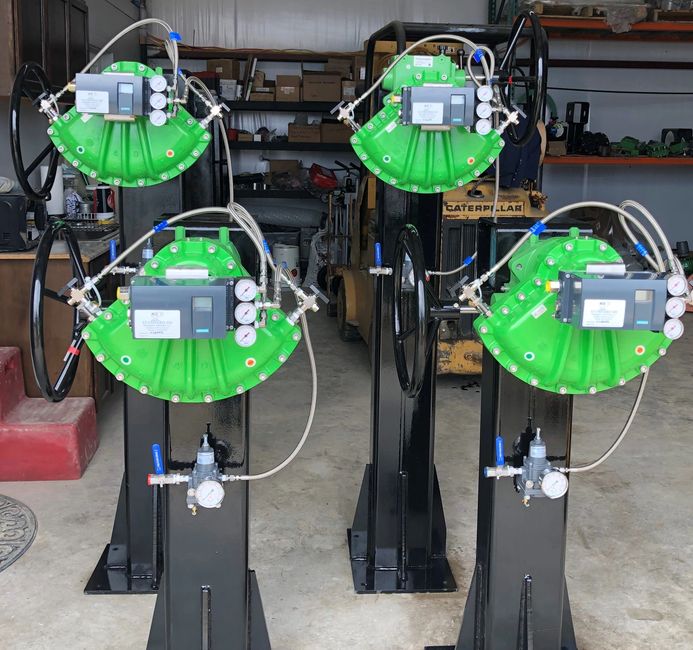

  • STANDARD-DD Series FS Floorstand drives are provided with the same footprint mounting dimensions & output shaft location as the existing drives.
  • Existing connecting rod linkage is inspected & reused or replaced by STANDARD-DD.

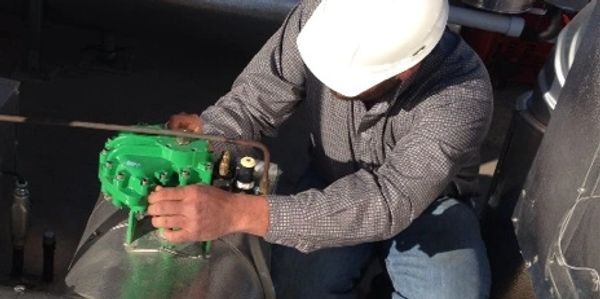

ON-SITE FIELD SERVICES


STANDARD-DD offers field services at your facility for the following:

  • Supervision of retrofit procedure when replacing an old tired damper drive with a new STANDARD-DD Damper Drive.
  • Our Technicians are familiar with the time & effort necessary for proper on-site installation & maintenance.
  • Our Field Service Teams will help you save time & energy with our expertise to get the job done right the first time.
  • Contact your local Representative or our factory office Sales Team for more information.
